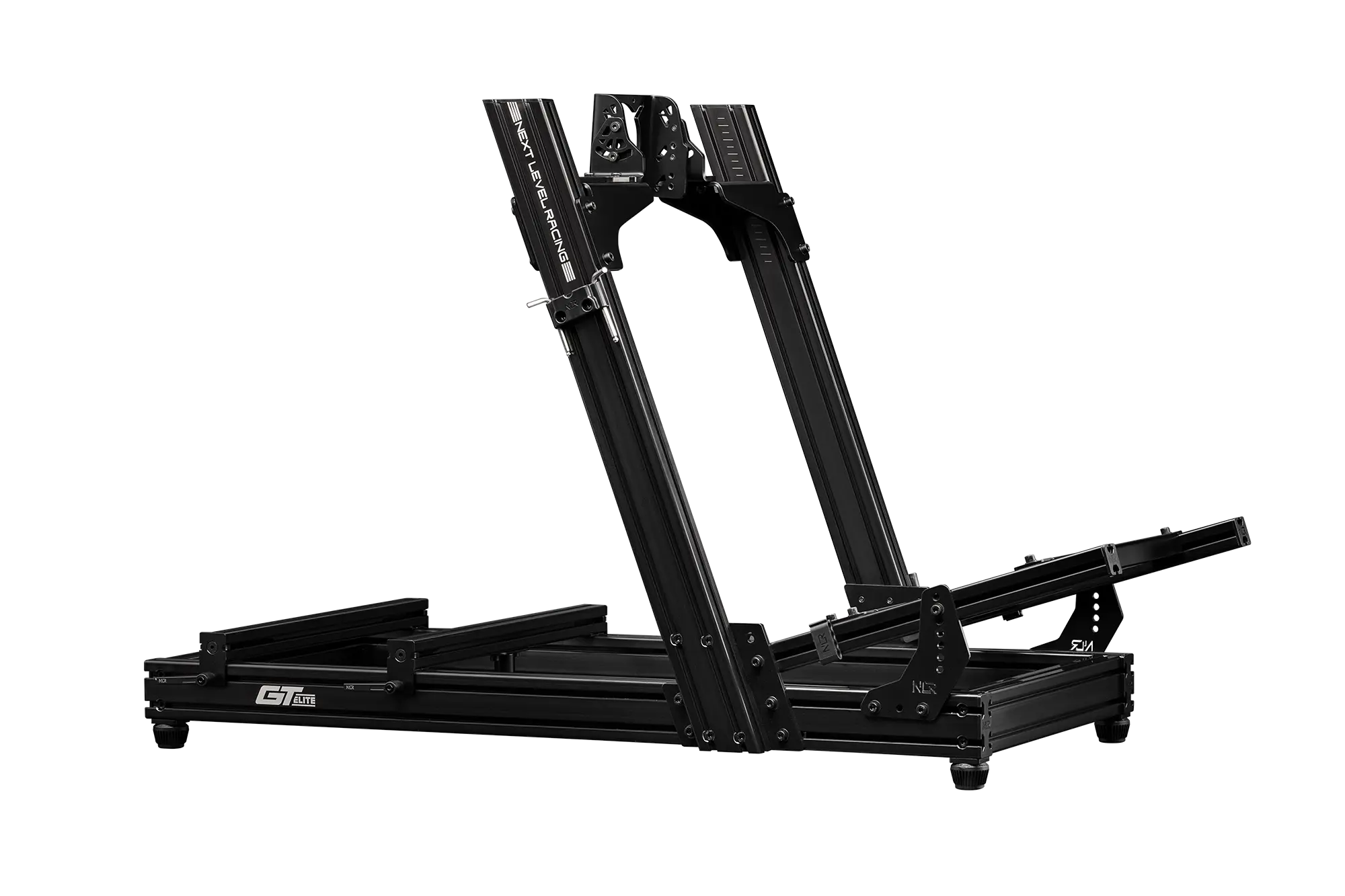

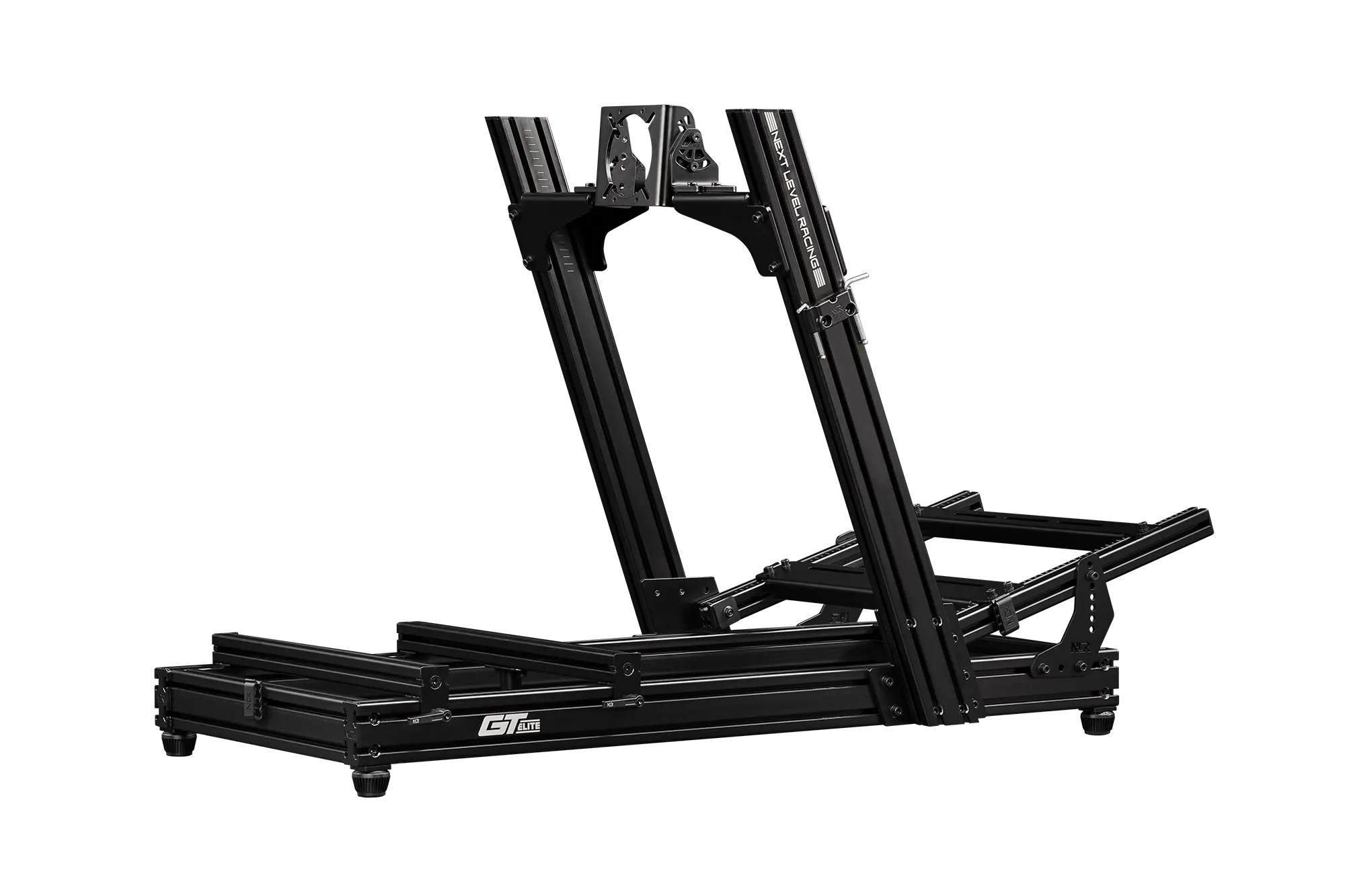

GTElite Lite Front & Side Mount Edition
Racing Cockpits
Leading Features
- DEDICATED GT COCKPIT WITH THE MOST AUTHENTIC AND ADAPTABLE DRIVING POSITION
- PREMIUM ANODIZED BLACK ALUMINIUM FINISH
- PRE-MACHINED PRECISION HOLES IN ALUMINIUM PROFILE FOR RIGIDITY AND EASE OF ASSEMBLY
- ALL THE EXTRA’S INCLUDED SUCH AS NLR FLEX FREE SEAT SLIDER SYSTEM, HEIGHT ADJUSTABLE SHOCK ABSORPTION FEET, BUTTKICKER® GAMER 2 ADAPTOR, CABLE MANAGEMENT CLIPS, AND TOOL KIT HOLDER
- TALLER ALUMINIUM PROFILE FOR WHEEL MOUNT UPRIGHTS ALLOWING FOR WIDER RANGE OF DRIVING POSITIONS AND USERS
- RIGID AND HIGHLY ADJUSTABLE MOUNTING SUPPORTS INCLUDED FOR YOUR SEAT, WHEEL, PEDALS
- PEDAL POSITION HEIGHT, ANGLE AND DISTANCE ADJUSTABLE
- PREMIUM PACKAGING INCLUDING DOUBLE BOXING AND FOAM MOULDED CUT OUTS FOR ALUMINIUM PROFILE AND PARTS
- FULLY ENCLOSED BASE FRAME FOR STRENGTH AND AESTHETICS AS WELL AS ONE PIECE ALUMINIUM PROFILES FOR RIGIDITY REQUIRED FOR MOTION
- COMPATIBLE WITH ALL MAJOR BRANDS OF ELECTRONICS FOR WHEELS, PEDALS INCLUDING FANATEC, SIMXPERIENCE AND MANY MORE
- UPGRADABLE TO BE COMPATIBLE WITH NEXT LEVEL RACING® MOTION PRODUCTS AND OTHER ACCESSORIES
- FRONT & SIDE MOUNT WITH 70 DEGREES OF ADJUSTABILITY FOR DIRECT DRIVE WHEELBASES
about
Build your own Elite Journey with the best-value aluminum profile cockpit. Specifically, the GTElite Lite cockpit’s patent-pending design brings unparalleled rigidity and stability. This innovation sets a new price point, consequently making it the best mid-range aluminum profile cockpit on the market. With attention to detail and engineering as seen on our Elite series, the GTElite Lite compared to mid-range cockpits in its class is more rigid, easier to assemble, and provides more inclusions, while providing a higher quality finish.
While constructed to suit the mid-range category with a “4080” profile, through cutting-edge engineering and manufacturing, combined with unique components, fixtures, and reinforcements, the GTElite Lite is the most rigid mid-range cockpit. Through this innovative process, the GTElite Lite in some cases is stronger than conventional “16040” cockpits seen on the market.
Particularly, with an extensive ecosystem in mind, the GTElite Lite is upgradable to be compatible with Next Level Racing® Motion Products and can be transformed into a multi-position cockpit solution with the ready set kits*.
*Motion Kit and Formula kit need to be purchased separately.
BUILT TO BE STRONG
Conventional corner brackets are now things of the past. In contrast, the GTElite Lite Cockpit utilizes an innovative approach with its 8mm thick Carbon Steel Reinforced Upright Direct Mounting plates. As a result, the GTElite Lite boasts stronger reinforcement and connection between the vertical uprights and the base of the chassis. Furthermore, to eliminate any movement and increase the clamping force between the components, custom-engineered full channel width spring ball T-slot nuts are strategically used throughout the build. Additionally, through bolts are employed in areas that require higher clamp force and rigidity. The 8mm Carbon Steel Sandwich Plate also provides a connection between the vertical uprights and the pedal plate to lock in and increase the reinforcement between the structural parts of the cockpit. Similarly, the strength continues with precision machined holes to bolt the base of the profile directly for a more rigid foundation.
TAKE CONTROL UNDER INTENSE RACING

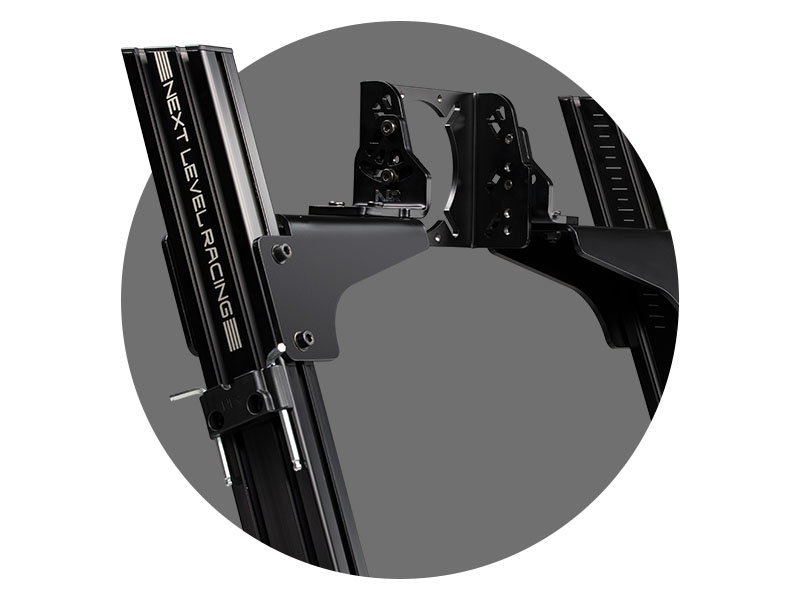

Included in the GTElite Lite Front & Side Mount Edition are Next Level Racing’s bespoke Direct Drive mounting solution. Additionally, machine-folded and precision laser-cut parts make the Next Level Racing GTElite Lite Front & Side Mount Cockpit a premium aluminum option for racers. This is particularly important for those who demand the ultimate in versatility and rigidity from their cockpit.
Furthermore, the 8mm thick Carbon Steel Side Mounts offer 70 degrees of tilt (40 degrees downward, 30 degrees upward). As a result, this feature gives drivers the option to fine-tune their Elite cockpit for the perfect driving position. Notably, the GTElite Lite Front & Side Mount Edition also includes 6mm Carbon Steel (machine folded & laser cut) “WINGS” and the 6mm Front Mount Bracket Option.
Moreover, the strength of these components is evident in the FEA (Finite Element Analysis) Tests. Particularly, these tests compare the innovative GTElite Lite plate designs to other flat steel or aluminum designs commonly found in conventional cockpits on the market.
.
Pedal Deck – equivalent to 10.84mm steel or 15.83mm aluminum
Shifter Plate – equivalent to 18.51 steel or 29.18mm aluminum
Our custom Front & Side Mount is compatible with the best Direct Drive wheelbase brands on the market, full compatibility is below:
– Fanatec dd1/dd2 podium direct drive
– Simucube 2 Pro /Simucube 2 Sport/Simucube 2 Ultimate
– Simagic Alpha/M10
– Mige 130 motors
– VRS Directforce Pro
– Kollmorgen akm 52-53-54 (OSW and Leo Bodnar Simsteering systems)
+ more

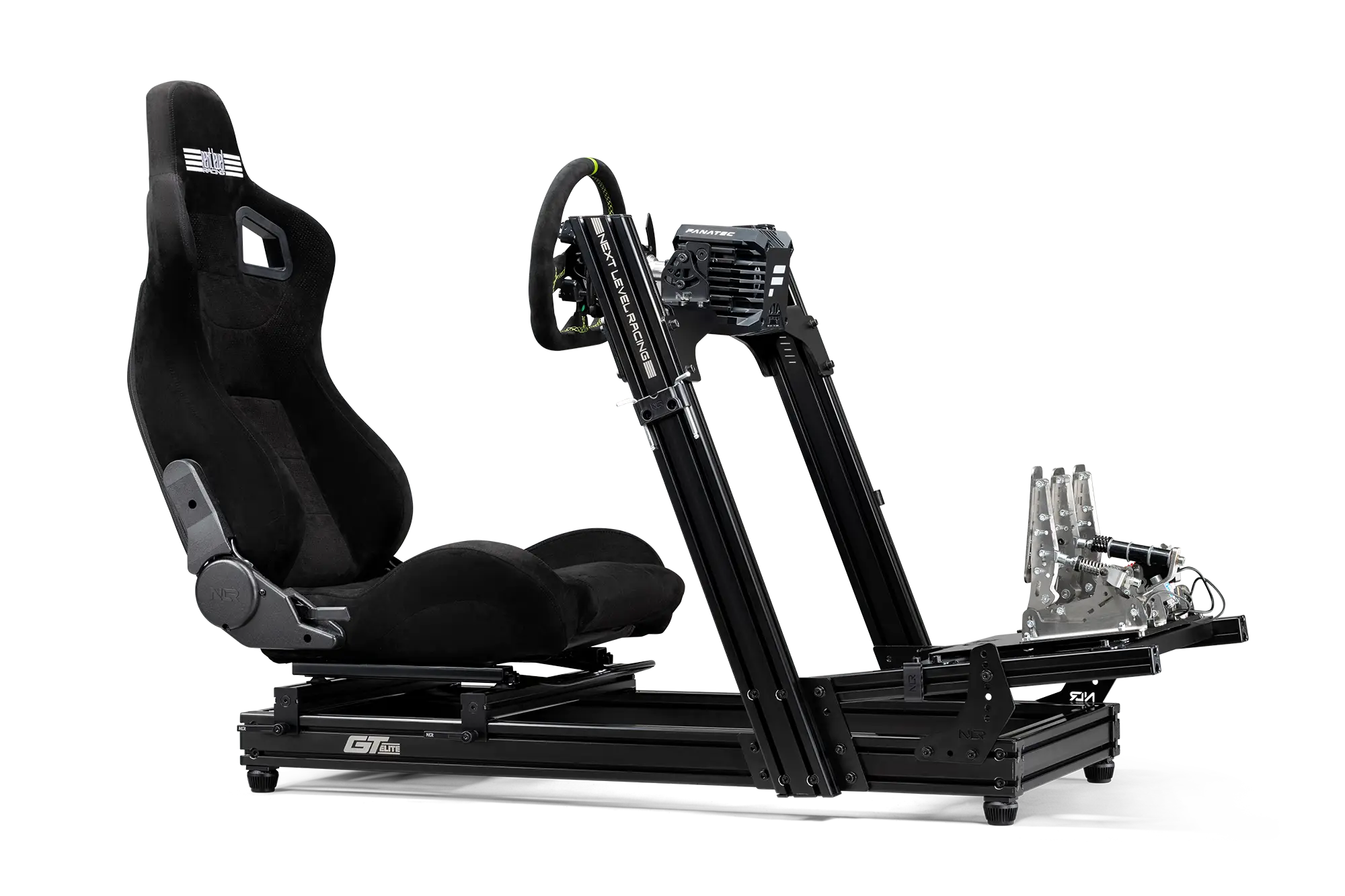

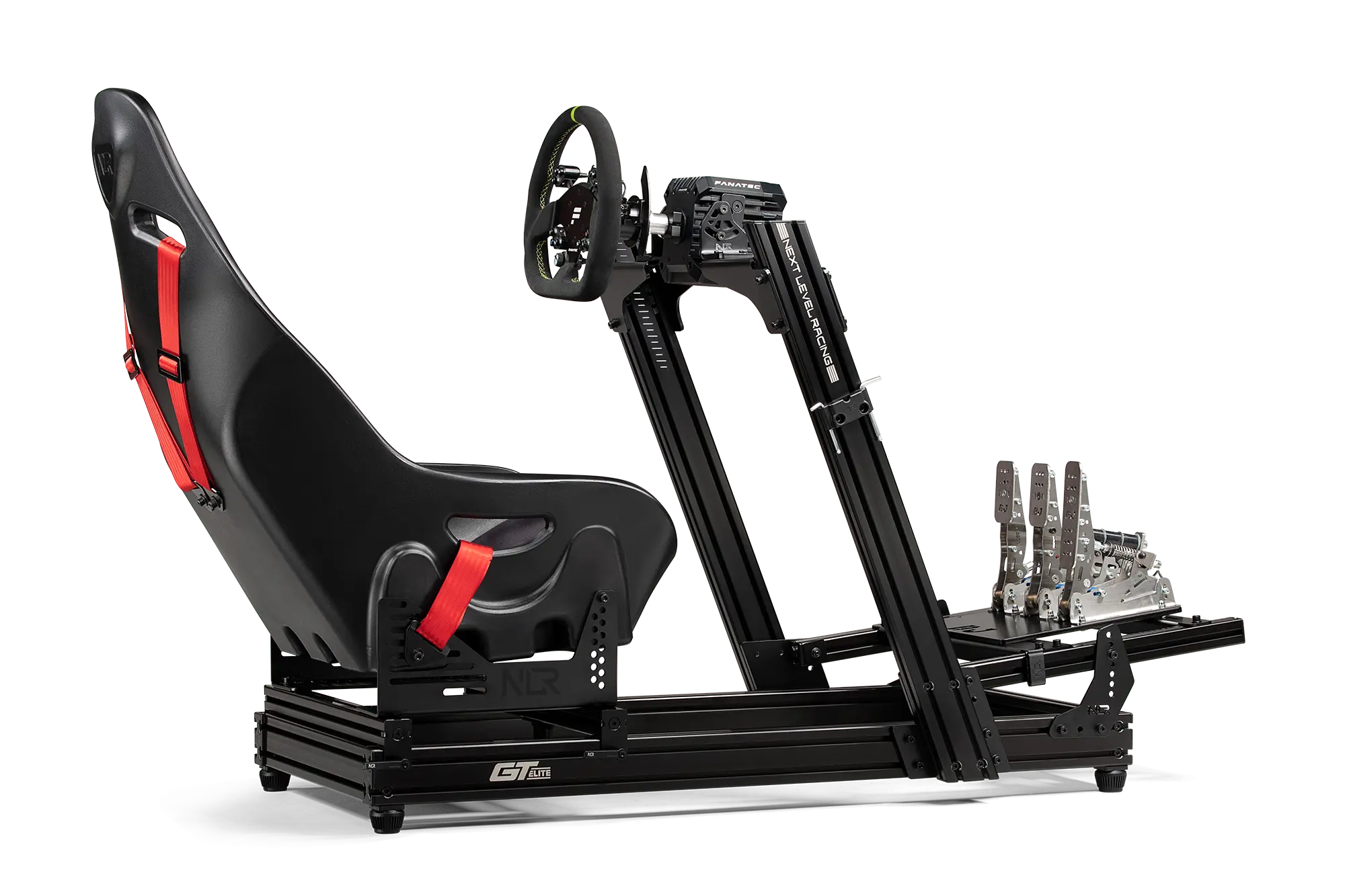

FLEX-FREE NLR SEAT SLIDERS SYSTEM
The innovative Next Level Racing® Seat Sliding System has been meticulously designed and engineered, specifically to address and eliminate the issue of flex found in conventional seat sliders used in simulators. Then, the NLR ratchets are thoughtfully included, thereby allowing you to easily slide your seat back and forth. Consequently, this feature enables you to find the desired position, ensuring a flex-free racing experience.
Additionally, the Next Level Racing® Elite Sim Racing Seats are highly recommended for use with the Elite range of cockpits. These seats have been specifically designed and optimized to meet the needs of elite sim racers
EASE OF ASSEMBLY
Designing custom components and utilizing advanced manufacturing processes, including precision machined holes in the aluminum profile, facilitates easier assembly and a more rigid connection as the profile bolts together. As a result, the improved design significantly reduces the hassles of aligning fiddly corner brackets, effectively making them a thing of the past. Combining the ease of assembly with the laser-etched line markings on the GTElite Lite profile helps you to get racing quicker than any other aluminum cockpit before. Each piece is individually placed in our custom foam packaging to ensure the safety of the product while in transport, providing a seamless user experience from the time the packaging is opened, completing the Elite experience.
ALL THE EXTRAS INCLUDED
ALL THE EXTRAS INCLUDED
Equipping the user with all the gear needed for the most authentic sim racing experience
- Premium anodizing quality and finish aluminium profile with custom NLR end caps, ensuring a sleek and professional look.
- Additionally, laser-etched logos and line markings are included for easier and quicker adjustments.
- Also available is the ButtKicker Gamer 2 Adaptor, enhancing the immersive experience.
- A flex-free seat slider system is integrated, providing stability and comfort.
- Furthermore, the Pedal slider system facilitates quicker distance adjustments, complete with easy alignment laser line guides.
- Next Level Racing® Custom Feet are provided, featuring height-adjustable shock-absorption feet for stability.
- Also included are 6 x Next Level Racing® Custom Cable Clips, capable of holding up to 4 larger cables or 8 smaller gauged cables, for organized cable management.
- There’s also a Next Level Racing® Tool Kit Holder to keep your tools for adjustment handy, connected to the cockpit and a magnetic spirit level for precision alignment.
- Additionally, a taller aluminum profile for wheel mount uprights allows more leg clearance, accommodating a wider range of users and driving positions.
- Lastly, a larger wheel deck is included, allowing the attachment of various accessories and peripherals for enhanced customization.

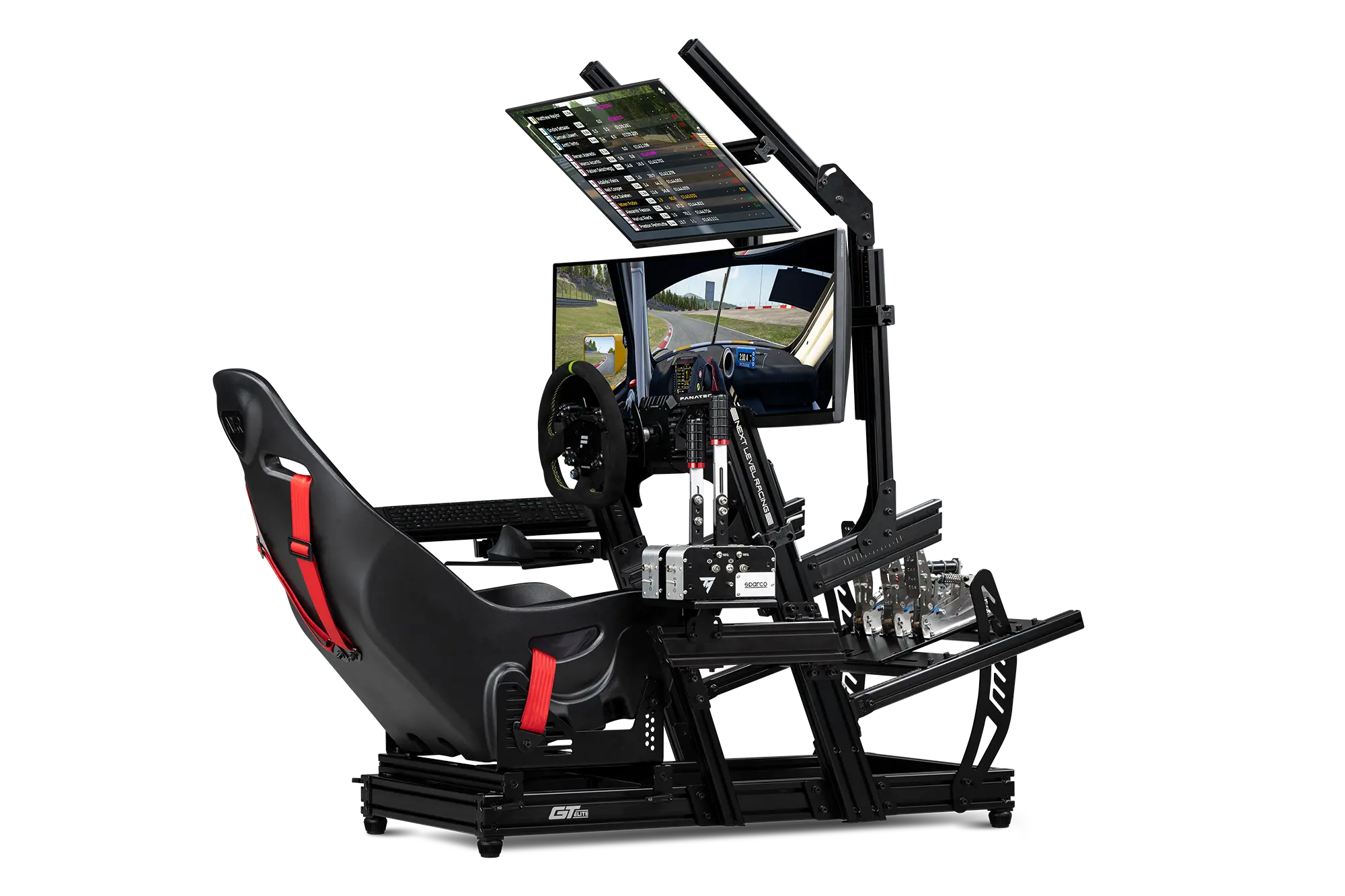

BUILD THE ECOSYSTEM YOU WANT
The Next Level Racing® GTElite Lite offers versatile upgrade options within the Elite series to meet the user’s evolving racing needs. For instance, with the purchase of the Next Level Racing® GTElite Motion Adaptor Kit*, the GTElite Lite becomes compatible with Next Level Racing’s existing and future motion products. Moreover, the GTElite Lite can transform into a Formula or Hybrid racing position cockpit. That is possible through the addition of the Next Level Racing GTElite Formula and Hybrid Pedal Upgrade Kit and the Next Level Racing Universal Seat Brackets*. Furthermore, with a growing ecosystem of accessories in the Elite series, users have the opportunity to create a full racing experience. They can do this by adding accessories like attachable Monitor Stands, keyboard and mouse trays, tablet mount holders, and VR holders.
*Items purchased separately
Features
- DEDICATED GT COCKPIT WITH THE MOST AUTHENTIC AND ADAPTABLE DRIVING POSITION
- PREMIUM ANODIZED BLACK ALUMINIUM FINISH
- PRE-MACHINED PRECISION HOLES IN ALUMINIUM PROFILE FOR RIGIDITY AND EASE OF ASSEMBLY
- TALLER ALUMINIUM PROFILE FOR WHEEL MOUNT UPRIGHTS ALLOWING FOR WIDER RANGE OF DRIVING POSITIONS AND USERS
- RIGID AND HIGHLY ADJUSTABLE MOUNTING SUPPORTS INCLUDED FOR YOUR SEAT, WHEEL, PEDALS
- PEDAL POSITION HEIGHT, ANGLE AND DISTANCE ADJUSTABLE
- PREMIUM PACKAGING INCLUDING DOUBLE BOXING AND FOAM MOULDED CUT OUTS FOR ALUMINIUM PROFILE AND PARTS
- FULLY ENCLOSED BASE FRAME FOR STRENGTH AND AESTHETICS AS WELL AS ONE PIECE ALUMINIUM PROFILES FOR RIGIDITY REQUIRED FOR MOTION
- COMPATIBLE WITH ALL MAJOR BRANDS OF ELECTRONICS FOR WHEELS AND PEDALS INCLUDING FANATEC, SIMXPERIENCE AND MANY MORE
- UPGRADABLE TO BE COMPATIBLE WITH NEXT LEVEL RACING® MOTION PRODUCTS AND OTHER ACCESSORIES
- FRONT & SIDE MOUNT WITH 70 DEGREES OF ADJUSTABILITY FOR DIRECT DRIVE WHEELBASES
What's in the box
- Next Level Racing® GTElite Lite Frame
- Next Level Racing® Tool Holder and Allen Keys, spirit level
- Next Level Racing® height adjustable shock absorption feet
- 6 x Next Level Racing® Cable Management Clips
- Buttkicker® Gamer 2 adaptor
- Bolts to hard mount your wheel and pedals
- Next Level Racing® Custom End Caps
- Magnetic spirit level
- Colour instruction booklet for quick and easy assembly
- Digital assembly instructions and assembly videos available here: http://bit.ly/nlr-instructions
Specifications
- Supported Height: 120 -210 cm or 4ft – 6ft 9 inches
- Supported Max Weight: 150 kg or 330 lbs
- Product Dimensions: (L) 148 cm x (W) 82.5 cm or (H) 86.5cm /(L) 58.3 inches x W 32.5 inches x H 34.1 inches)
- Box Dimensions: 128.5 cm (L) X 41cm (W) X 25.1cm (H)/ 50.6 inches(L) x 16.1 inches (W) x 9.9 inches(H)
- Product Weight: 34 kg or 74.9 lbs
- Boxed Weight – 36.6 kg or 80.7 lbs
- Part Number – NLR-E029
Compatible NLR Products
- Next Level Racing® Elite Freestanding Monitor Stands
- Next Level Racing® Elite Direct Monitor Mount– Black Edition
- Next Level Racing® ERS1 Elite Reclining Seat
- Next Level Racing® ERS2 Elite Reclining Seat
- Next Level Racing® ES1 Seat
- Next Level Racing® Universal Seat Brackets
- Next Level Racing® Floor Mat
- Next Level Racing® Motion Plus platform
- Next Level Racing® Motion Platform V3 (Requires Next Level Racing Elite Motion Adaptor Upgrade Kit)
- Next Level Racing® Traction Plus platforms (Requires Next Level Racing Elite Motion Adaptor Upgrade Kit)
- Next Level Racing® Elite Motion Adaptor Upgrade Kit
- Next Level Racing® Elite Keyboard and Mouse Tray- Black Edition
- Next Level Racing® Elite Tablet/Button Box Mount Add-On
- Next Level Racing® Elite Formula and Hybrid Pedal Upgrade Kit
***Keep up to date with Next Level Racing® ecosystem adaptability by visiting the product page on www.nextlevelracing.com

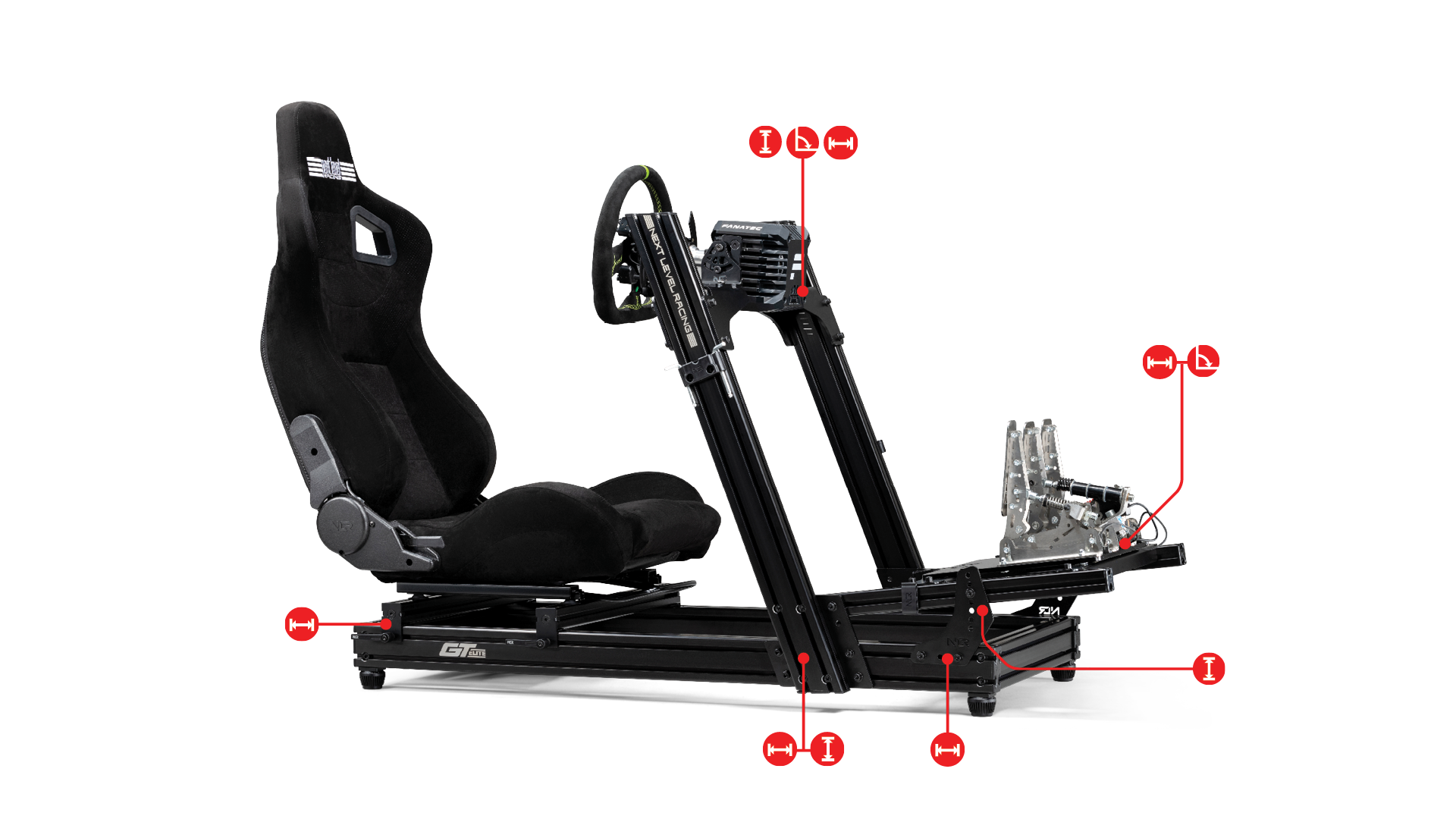

Adjustability
